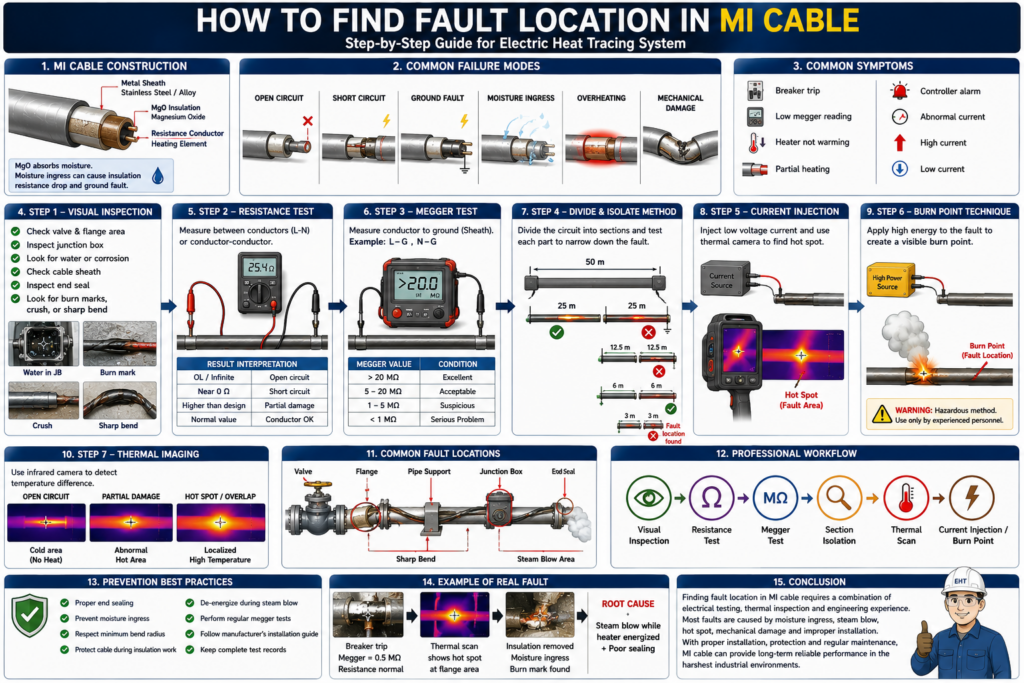

Professional Techniques Used in Industrial Electric Heat Tracing Systems

Introduction

Mineral Insulated (MI) Cable is widely used in industrial Electric Heat Tracing (EHT) systems for applications such as:

• Oil & Gas
• Petrochemical
• Refineries
• Power Plants
• High-temperature process systems

MI cables are preferred because they offer:

• High temperature resistance
• Excellent durability
• Mechanical strength
• Suitability for hazardous areas

However, when a fault occurs, locating the damaged point can be difficult and time-consuming without proper testing methods.

In real industrial environments, professional EHT technicians commonly use:

• Megger testing
• Resistance measurement
• Thermal inspection
• Section isolation
• Current injection
• Burn-point techniques

to identify fault locations quickly and accurately.

This article explains practical field methods for locating faults in MI heating cables.

1. Understanding MI Cable Construction

Before fault finding, it is important to understand MI cable construction.

An MI cable typically consists of:

• Resistance conductor
• Magnesium Oxide (MgO) insulation
• Metallic sheath (Stainless Steel / Alloy)

MgO acts as both:

• Electrical insulation
• Thermal conductor

A critical characteristic of MgO is:

MgO absorbs moisture easily.

When moisture enters the cable:

• Insulation resistance decreases
• Leakage current increases
• Ground faults may occur
• Breakers may trip

2. Typical MI Cable Failure Modes

Common failure types include:

Failure Type	Description
Open Circuit	Broken conductor
Short Circuit	Conductors shorted together
Ground Fault	Conductor leakage to sheath
Moisture Ingress	Water absorbed into MgO
Thermal Damage	Overheating damage
Mechanical Damage	Crushing, bending, impact

3. Initial Symptoms of MI Cable Failure

Typical symptoms include:

• Breaker tripping
• Low megger reading
• Heater not warming
• Partial heating
• Controller alarm
• Abnormally low current
• Abnormally high current

4. Step 1 — Visual Inspection

Always begin with a visual inspection.

Areas to Inspect

Valve and Flange Areas

These are high-risk locations because they act as heat sinks and hot spot zones.

Junction Boxes

Check for:

• Water ingress
• Moisture
• Carbon tracking
• Loose terminals

Cable Sheath

Inspect for:

• Burn marks
• Deformation
• Crushing
• Sharp bends
• Corrosion

End Seals

This is one of the most common failure points.

If the seal is damaged:

MgO will absorb moisture.

5. Step 2 — Resistance Test

Measure conductor resistance.

Measure Between:

L-N
or
Conductor-to-Conductor

Then compare with design values.

Resistance Interpretation

Result	Meaning
OL / Infinite	Open circuit
Near 0 Ω	Short circuit
Higher than design	Partial conductor damage
Stable normal value	Conductor likely healthy

6. Step 3 — Megger Test

This is one of the most important tests.

Use a megger to measure:

Conductor → Ground

Examples:

• L → Sheath
• N → Sheath

Typical Test Voltage

According to IEEE 515 and most manufacturers:

Cable Type	Megger Voltage
MI Cable	500 VDC or 1000 VDC

Megger Value Interpretation

Megger Value	Condition
> 20 MΩ	Excellent
5–20 MΩ	Acceptable
1–5 MΩ	Suspicious
< 1 MΩ	Serious problem

7. Moisture vs Actual Cable Damage

For MI cables:

Low megger values do not always mean conductor failure.

The problem may simply be:

• Moisture ingress
• Wet insulation
• Damp MgO

Real Example

Before insulation installation:

16 MΩ

After insulation installation:

0.7 MΩ

But conductor resistance remained normal.

This indicates:

Moisture ingress rather than conductor damage.

8. Step 4 — Divide and Isolate Method

This is a common refinery troubleshooting technique.

Principle

Divide the heating circuit into sections.

Example:

50 m
→ divided into
25 m + 25 m

Then perform megger testing on each section separately.

Procedure

If first half is normal

→ fault is in second half

If second half is normal

→ fault is in first half

Continue dividing:

25 m
→ 12.5 m
→ 6 m
→ 3 m

until the fault location is narrowed down.

9. Step 5 — Current Injection Technique

Used when the cable is not completely shorted.

Principle

Inject low voltage current into the conductor.

The fault location will generate more heat than surrounding areas.

Equipment Used

• Low-voltage current source
• Clamp meter
• Thermal camera

Detection Method

Scan the cable using a thermal camera.

The fault point typically appears as:

Localized hot spot

10. Step 6 — Burn Point Technique

An advanced technique commonly used in refineries and petrochemical plants.

Used when:

• Fault resistance is high
• Fault location is difficult to identify

Principle

Apply temporary high energy to the fault.

This causes the damaged point to:

Become thermally visible.

Then detect it using:

• Thermal camera
• IR thermometer
• Audio detection tools

WARNING

This method is hazardous and should only be performed by experienced personnel.

11. Step 7 — Thermal Imaging Inspection

One of the fastest fault detection methods.

Use:

Infrared Thermal Camera

Common Thermal Patterns

Open Circuit

After the break point:

No heat detected

Partial Damage

Some sections appear:

Abnormally hot

Overlap / Hot Spot

Thermal image shows:

Localized high temperature area

12. Common MI Cable Fault Locations

Typical failure locations include:

Location	Common Cause
Valve	Hot spot
Flange	Overheating
Pipe Support	Crushing
Junction Box	Moisture
End Seal	Water ingress
Sharp Bend	Conductor damage
Steam Blow Area	Overexposure

---

13. Steam Blow Damage in MI Cable

During commissioning:

Steam blow

is one of the leading causes of failure.

Pipe temperatures may reach:

300–450°C

If this exceeds cable rating:

• MgO degrades
• Conductors oxidize
• Sheath becomes damaged

14. How Professionals Locate Faults Quickly

Professional EHT technicians usually follow this workflow:

Step 1

Visual inspection

Step 2

Resistance measurement

Step 3

Megger testing

Step 4

Section isolation

Step 5

Thermal scanning

Step 6

Current injection or burn-point testing (if required)

15. Prevention Best Practices

✔ Proper End Sealing

One of the most important requirements for MI cables.

---

✔ Prevent Moisture Ingress

Protect against:

• Junction box leaks
• Poor glands
• Damaged seals

---

✔ Respect Minimum Bend Radius

Avoid excessively tight bends.

---

✔ Protect Cable During Insulation Work

Mechanical damage during insulation installation is very common.

---

✔ De-energize During Steam Blow

Extremely important.

---

✔ Perform Regular Megger Testing

Recommended stages:

• Before installation
• After installation
• Before insulation
• After insulation
• Before energization
• During maintenance shutdown

---

16. Real Industrial Failure Example

Symptoms

• Breaker tripping
• Megger = 0.5 MΩ
• Conductor resistance normal

---

Investigation

Thermal scan revealed a hot spot near a flange.

After insulation removal:

• Moisture ingress observed
• Burn marks visible
• Evidence of steam blow overheating

---

Root Cause

Steam blow while heater remained energized
+
Poor weather sealing

---

17. Conclusion

Locating faults in MI heating cables requires a combination of:

• Electrical testing
• Thermal inspection
• Engineering experience

Common industrial troubleshooting methods include:

• Resistance testing
• Megger testing
• Section isolation
• Thermal imaging
• Current injection
• Burn-point techniques

Most MI cable failures are caused by:

• Moisture ingress
• Steam blow exposure
• Hot spots
• Mechanical damage
• Improper installation

The best prevention methods include:

• Proper installation
• High-quality moisture sealing
• Regular megger testing
• De-energizing during steam blow
• Monitoring thermal conditions during operation

When properly installed and maintained, MI heating cables can provide extremely long service life and reliable performance even in the harshest industrial environments.
